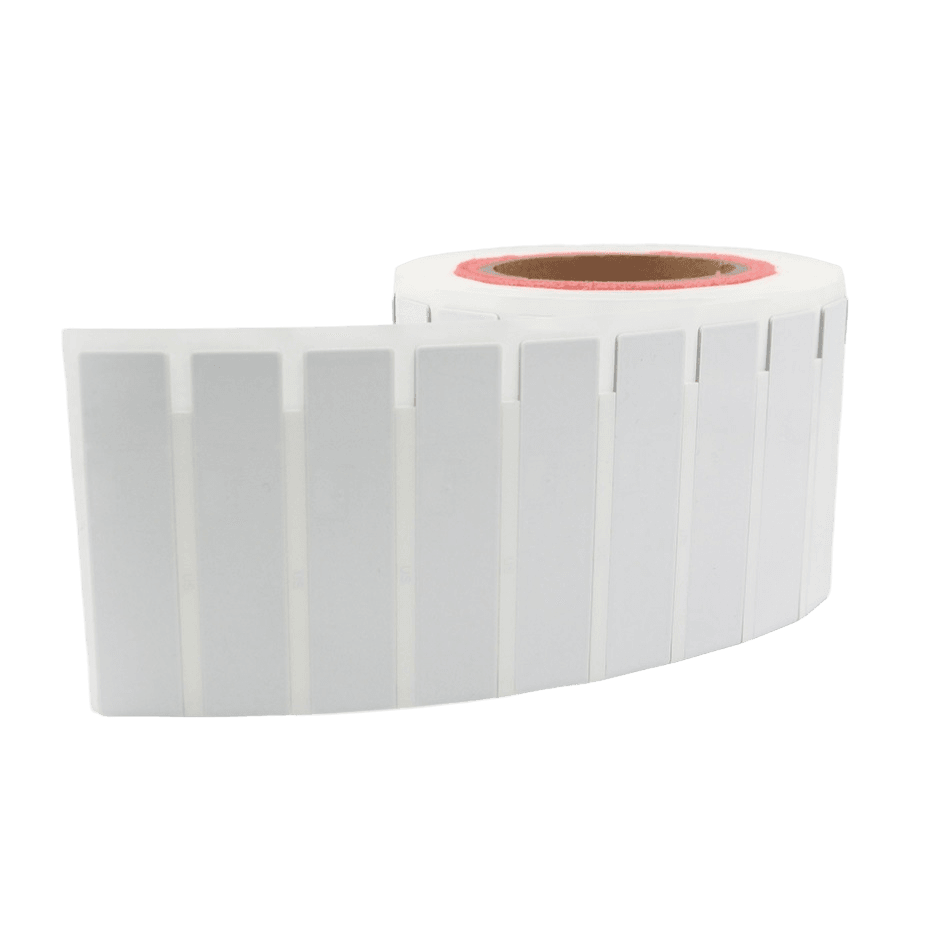

UHF Anti-Metal Soft&Flexible Printable Label Tag MS9522

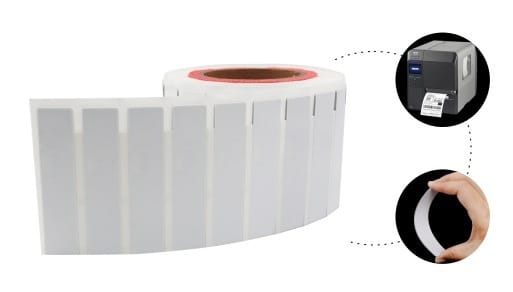

This versatile label is designed for easy application onto metallic assets, particularly those with irregular or uneven surfaces. It exhibits excellent performance on metal surfaces and can be printed and encoded using an RFID printer.
UHF Anti-Metal Soft&Flexible Printable Label Tag
Description
Overview:
This versatile label is designed for easy application onto metallic assets, particularly those with irregular or uneven surfaces. It exhibits excellent performance on metal surfaces and can be printed and encoded using an RFID printer.
Key Features
- Small size
- Performs reliably on and off metal
- Lightweight and flexible with paper-thin profile
- Printable
- Reliable and reusable, cost effective label for metallic assets
- EPC Gen2 compatible; works with many RFID solutions
Specifications:
| Operating frequency | 860 MHz to 960 MHz |
| Chip Type | NXP UCODE 8/9 OR Impinj R6P |
| RFID tag compatibility | EPC C1G2 (ISO18000-6C) |
| Functionality | Read/Write |
| Memory | U8: User -N/A; EPC – 128 bits; TID – 96 bits; U9: User -N/A; EPC – 96 bits; TID – 96 bits |
| Read distance | >= 5 meter On metal (reader dependent) |
| Data retention | > 10 years |
| Installation | Adhesive |
| Supported Printer | SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc. |
| Working /Storage temperature | -40~+85℃ |
| Dimensions | 95 x 22 x 1.2mm（L x W x T） |
| IP Rating | IP68 |
