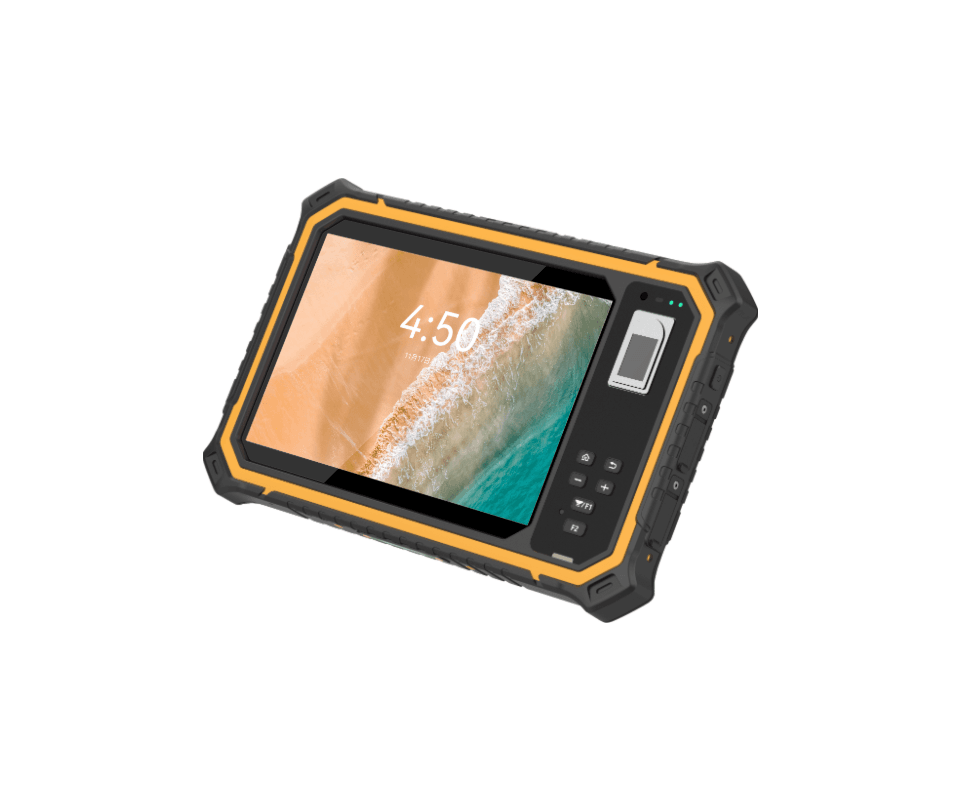

Rugged android tablet 8 inch T80
The rugged android tablet 8 inch T80 is a multifunctional RFID tablet computer with data acquisition capabilities. It supports RFID tag reading and writing as well as NFC applications. The product adopts leading industrial-grade protection, reaching the IP67 sealing standard. It has reliable performance against drops up to 1.8m.T80 Supports reading of 915M UHF RFID tags with the 18000-6c, EPC G2 protocol, and supports 14443A, 14443B, 15693 protocols.At the same time, the T80 supports barcode scanning, fingerprint collection, GPS positioning, Wi-Fi, and Bluetooth functions.
Detaill Shot
Tech Specs
Accessories
rugged android tablet 8 inch T80 Specification
|
Hardware
|
||||
|
CPU
|
ARM Cortex A73 Octa –core ( 2.0GHz)
|
|||
|
GPU
|
Arm Mali–G72 MP3
|
|||
|
RAM
|
8G
|
|||
|
Internal Memory
|
128G
|
|||
|
Main Camera
|
13.0MP(AF) with flash led
|
|||
|
Sub Camera
|
5.0MP
|
|||
|
Battery
|
18900mAh
|
|||
|
Display
|
8 inch IPS/AFFS FHD 1920*1200 industrial 1000nit Sunlight Readable
|
|||
|
Touch Panel
|
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
|
|||
|
IO/Sensor/Navigation
|
||||
|
SIM Card
|
Nano sim card*2
|
|||
|
TF Card
|
Micro SD card ( T-FLASH card) ;max 256GB
|
|||
|
Charging port
|
Type-C & 4pin pogo pin（magnetic）
|
|||
|
Data interface
|
USB Type-A(Host)*1 ， Type-C*1
|
|||
|
UART（optinal）
|
UART TTL3.3 X2 onboard
|
|||
|
RS232(optional)
|
RS232X1
|
|||
|
RS485（optinal）
|
RS485X1
|
|||
|
Direction Sensor
|
Support
|
|||
|
Gravity sensor
|
Support
|
|||
|
Magnetic Field Sensor
|
Support
|
|||
|
Motion sensor
|
Support
|
|||
|
Rotation Vector
|
Support
|
|||
|
Light-sensor
|
Support
|
|||
|
Gyro sensor
|
Support
|
|||
|
Acceleration sensor
|
Support
|
|||
|
Charger
|
5.0V 2A-10W
|
|||
|
Temperature pressure sensor
|
Optional
|
|||
|
Navigation
|
GPS+Beidou+Glonass+AGPS+SBAS （EPO 2.5m）
|
|||
|
Appearance
|
||||
|
Size
|
256*159*23mm（L×W×H）
|
|||
|
Weight
|
1015g
|
|||
|
Color & Material
|
Black&yellow; Black&green; Black&Gray（PC+ABS+TPU）
|
|||
|
Communications & Networking
|
||||
|
Phone Call
|
GSM /WCDMA/CDMA 1X/VoLTE
|
|||
|
2G
|
GSM/CDMA 1X/EDGE/GPRS/WAP
|
|||
|
2G Band
|
GSM（B2/3/5/8）
|
|||
|
3G
|
WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO
|
|||
|
3G Band
|
WCDMA（B1/2/5/8）,Evdo: BC0/BC1 CDMA: BC0/BC1
|
|||
|
4G
|
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink
|
|||
|
4G Band
|
TD-LTE（B38/39/40/41）；FDD LTE（B1/2/3/4/5/7/8/12/17/20/28）
|
|||
|
WI-FI
|
Dual-band (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
|
|||
|
Bt
|
5.0 Low Energy(LE)
|
|||
|
Industrial & Reliability Design
|
||||
|
Shake-proof
|
1-19Hz/1.0mm; 19-200Hz/1.0g
|
|||
|
Dropproof /IK
|
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
|
|||
|
Waterproof
|
Class 7 ( IEC 60529 )
|
|||
|
Dustproof
|
Class 6 ( IEC 60529 )
|
|||
|
Reliability
|
MTBF>5000h；MTTR<0.5h
|
|||
|
Operating
|
-20°C to 55°C
|
|||
|
Storage Temperature
|
-40°C to 70°C
|
|||
|
RH
|
5% to 95%
|
|||
|
Operating Altitude
|
Max: 4,500 m（15,000 feet）
|
|||
|
Certification/OS/Software
|
||||
|
Certification
|
3C /FCC/CE/ROHS/IP67（IEC 60529）
|
|||
|
Language
|
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian,
Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese,Chinese Traditional,etc |
|||
|
OS
|
Android 11/13 (Continuous Update)
|
|||
|
Package/Warranty terms/OEM
|
||||
|
Warranty
|
24 months（non-human damages）
|
|||
|
OEM/ODM
|
Support
|
|||
|
Package
|
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box(Can be customized logo)/Toolkit(optional)SIM Card Ejector x 1 / Magnetic Charging Cable
|
|||
The rugged android tablet 8 inch T80 is a multifunctional RFID tabletcomputer with data acquisition capabilities. It supports RFID tag readingand writing as well as NFC applications. T80 Supports reading of 915MUHF RFID tags with the 18000-6c, EPC G2 protocol, and supports 14443A, 14443B, 15693 protocols.The T80 has a practical design, is portable and easy to carry, and features an 8.0-inchG+G5-point full-tempered high-strength capacitive touch screen.
The product adopts leading industrial-grade protection, reaching the IP67 sealing standard. It has reliable performance against drops up to 1.8m in height, and its drop protection meets the military protection level of MIL-STD-810G/Method516.6/ProcedureIV.
It uses a high-voltage, large-capacity18900mAh lithium battery, providing an exceptionally long battery life to support work more effectively.It also features the fastest WIFI communication to ensure efficient speed transmission.
The rugged android tablet 8 inch T80 can be used in fields with special operations and outdoor work such as oil, chemicals, smelting, natural gas, hazardous chemical transportation, geography, logistics, forestry, public transportation, construction, maintenance, mining, military, and security.
It is visible under outdoor sunlight conditions and can start in ultra-low temperature conditions. To meet the requirements of the high-precision mapping market, it is equipped with built-in GPS, GLONASS, GALILEO, and QZSS sub-meter level high-precision mapping modules, and can be connected to a large antenna externally.
Product Features
● 4G full-network support (TDD-LTE/FDD LTE for mobile, Unicom, and Telecom)
● Ultra-large memory (8G RAM + 128G ROM) for smoother operation
● 13MP camera for clearer photography
● Industrial design: IP67 water and dust resistance
● Military protection standard of MIL-STD-810G/Method516.6/ProcedureIV
● Drop resistance: capable of withstanding drops from up to 1.8 meters at any angle
● High-definition screen: super bright screen (1000cd/m2), visible under sunlight, meeting outdoor use requirements
● High-precision GPS
● LF, HF, UHF RFID, NFC in various frequency bands
● Expandable: can be expanded with three industrial serial ports, three GPIOs
● Screen reinforcement: fully tempered high-strength capacitive touch screen
● Large-capacity battery: 18900mAh high-voltage large-capacity lithium battery for extended endurance
● Industrial design: full-size dual-color mold formed in one go, aircraft-grade titanium alloy material body support
● 2.4G/5.8G dual-band WiFi for stronger signal
● Android 10 or above operating system for multitasking
