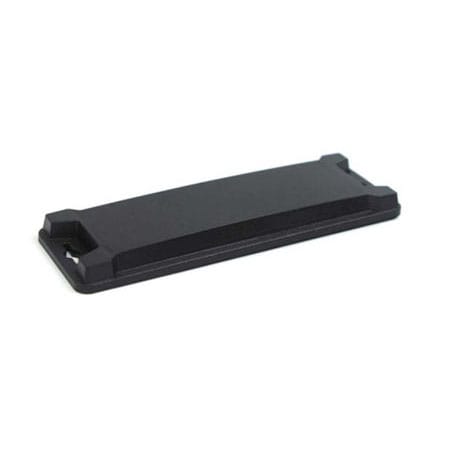

Long reading range up to 30 meters – UHF RFID tag RUG-008
RUG-008 has an operating frequency of either 902-928 MHz (US) or 865-868 MHz (EU) and is based on the Alien Higgs-3 IC, which provides industry-leading performance and up to a 30 meters long read range. The RUG-008 UHF RFID tag is IP68-rated, making it suitable for harsh outdoor environments as well as exposure to water and contaminants. Long range RFID RUG-008 has an operating temperature range of -20°C to +80°C), and can be attached using high-performance adhesives, via a rivet hole, or using a cable tie.
| Functional Specifications: |
| RFID Protocol | EPC Class1 Gen2, ISO18000-6C |
| Frequency | US 902-928MHz, EU 865-868MHz |
| IC type | Alien Higgs-3 |
| Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
| Write Cycles | 100,000times |
| Functionality | Read/write |
| Data Retention | Up to 50 Years |
| Applicable Surface | Metal Surfaces |
| Read Range(On Metal) : (Fix Reader) | Up to 30.0m – (US) 865-868MHz, on metal ; Up to 28.0m – (EU) 902-928MHz, on metal Up to 16.0m – (US) 865-868MHz, off metal ; Up to 14.0m – (EU) 902-928MHz, off metal |
| Read Range(On Metal) : (Handheld Reader) | Up to 22.0m – (US) 865-868MHz, on metal ; Up to 22.0m – (EU) 902-928MHz, on metal Up to 11.0m – (US) 865-868MHz, off metal ; Up to 11.0m – (EU) 902-928MHz, off metal |
| Warranty | 1 Year |
| Physical Specification: |
| Size | 130x42mm, (Hole: 2 hole) |
| Thickness | 10.5mm |
| Material | PC |
| Colour | Black (Red, Blue, Green, White) |
| Mounting Methods | Adhesive, Screw |
| Weight | 38.0g |
| Enivironmenal Specification: |
| IP Rating | IP68 |
| Storage Temperature | -30°C to +100°C |
| Operation Temperature | -20°C to +80°C |
| Certifications | Reach Approved,RoHS Approved,CE Approved |
