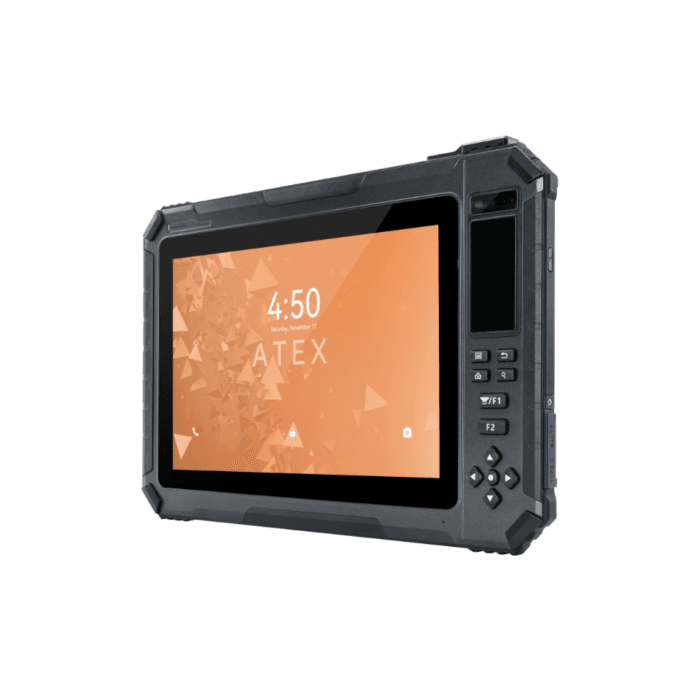

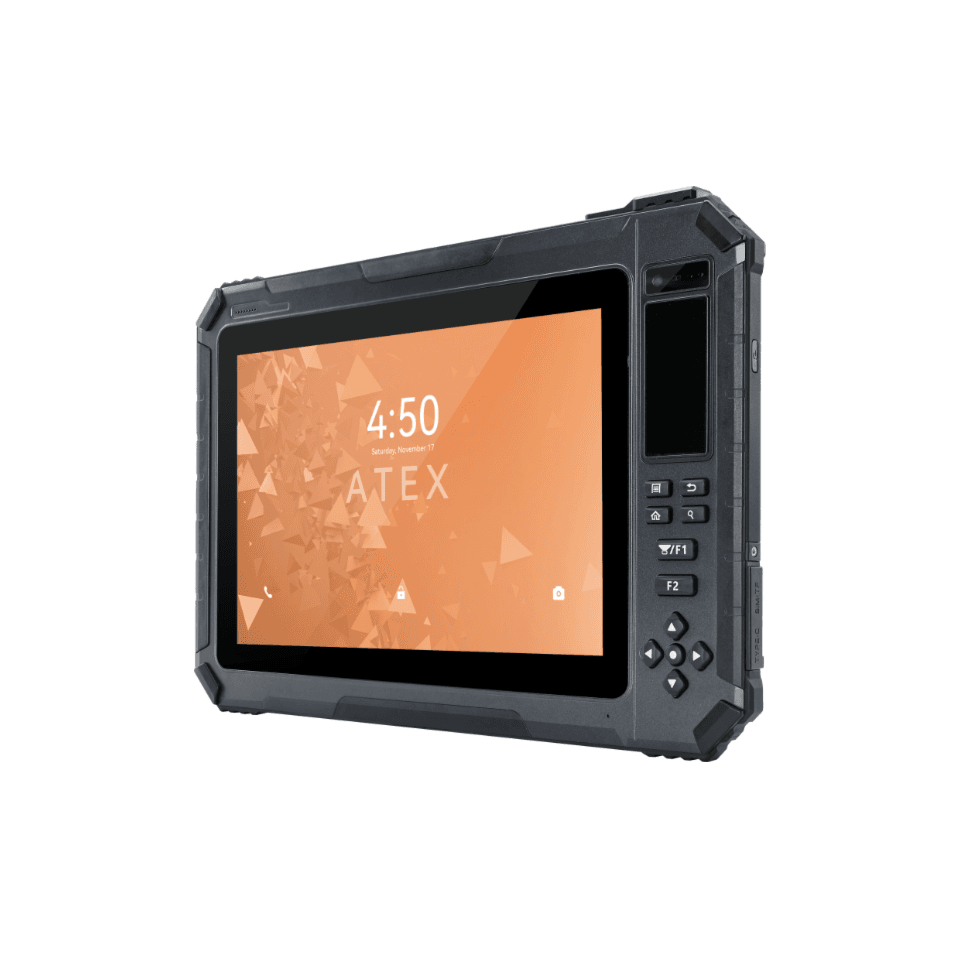

ATEX intrinsically safe tablet T101EX
ATEX intrinsically safe tablet T101EX
Intrinsically Safe Tablet’s are specifically designed and engineered for Hazardous Area environments. Tablet in Explosion Proof areas will specifically be marked with certifications such as ATEX Zone 1, ATEX Zone 2, Class 1 Divison 1, Class 1 Division 2, IECEx and more.
Detaill Shot
Tech Specs
Accessories
ATEX intrinsically safe tablet T101EX delivers more power, more connectivity, and more convenience than ever before, in a fully rugged form factor that meets the latest military-grade specifications. With ATEX certification, it offers powerful computing for use in potentially explosive atmospheres.
|
Hardware
|
|
|
CPU
|
ARM Cortex A73 octa-core (2.0GHz )
|
|
GPU
|
ARM Mali-G72 MP3
|
|
RAM
|
8GB
|
|
Internal Memory
|
128GB
|
|
External Memory
|
Micro SD card (T-FLASH card), max 256GB
|
|
Main Camera
|
13.0MP(AF) with flash led
|
|
Sub Camera
|
5.0MP
|
|
Battery
|
14600mAh
|
|
Display
|
10.1 inch IPS/AFFS 1920*1200 FHD industrial 1000nit Sunlight Readable
|
|
Touch Panel
|
Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen
|
|
IO/Sensor/Navigation
|
|
|
SIM Card
|
Nano sim card*2
|
|
TF Card
|
Micro SD card (T-FLASH card); max 256GB
|
|
Charging interface
|
Type-C & 8pin pogo pin
|
|
Data interface
|
USB Type-A(Host)*2, Type-C*1
|
|
Gravity sensor
|
support
|
|
Motion sensor
|
support
|
|
Direction Sensor
|
support
|
|
Magnetic Field Sensor
|
support
|
|
Gyro sensor
|
support
|
|
Rotation Vector
|
support
|
|
Light-sensor
|
support
|
|
Acceleration sensor
|
support
|
|
Charger
|
5.0V 2A-10W
|
|
Navigation
|
GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m)
|
|
Appearance
|
|
|
Size
|
320*228*12mm (L×W×H)
|
|
Weight
|
1360g
|
|
Color & Material
|
Gray(Titanium alloy+ABS+PC+TPU)
|
|
Communications & Networking
|
|
|
Phone Call
|
GSM /WCDMA/CDMA 1X/VoLTE
|
|
2G
|
GSM/CDMA 1X/EDGE/GPRS/WAP
|
|
2G Band
|
GSM（B2/3/5/8）
|
|
3G
|
WCDMA 3.75G (HSDPA+42.2Mbps, HSUPA+11.5Mbps), EVDO
|
|
3G Band
|
WCDMA(B1/2/5/8), Evdo: BC0/BC1 CDMA: BC0/BC1
|
|
4G
|
FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink
|
|
4G Band
|
TD-LTE(B38/39/40/41); FDD LTE(B1/2/3/4/5/7/8/12/17/20/28)
|
|
WI- FI
|
Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac
|
|
BT
|
5.0 Low Energy (LE)
|
|
Industrial & Reliability Design
|
|
|
Shake-proof
|
1-19Hz/1.0mm; 19-200Hz/1.0g
|
|
Dropproof /IK
|
MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05
|
|
Waterproof
|
Class 5 ( IEC 60529 )
|
|
Dustproof
|
Class 6 ( IEC 60529 )
|
|
Operating temperature
|
-20°C to 55°C
|
|
Storage Temperature
|
-40°C to 80°C
|
|
Reliability
|
MTBF>5000h; MTTR＜0.5h
|
|
RH
|
5% to 95%
|
|
Operating Altitude
|
Max: 4,500m (15,000 feet)
|
|
Certification/OS/Software
|
|
|
Certification
|
ATEX/3C /FCC/CE/ROHS/IP65（IEC 60529）
|
|
Language
|
English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified， Chinese, Chinese Traditional, etc
|
|
OS
|
Android 9/10/11/13 (Continuous updates)
|
|
Ex-Marking
|
II 2G Ex ib IIB T4 Gb
|
|
Certificate NO.
|
ECM 21 ATEX-B QS09
|
|
Package/Warranty terms
|
|
|
Warranty
|
24 months
|
|
Package
|
USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box/SIM Card Ejector / Magnetic Charging Cable
|
|
NFC
|
|
|
Protocol Standard
|
ISO14443A/B, ISO15693, NFC
|
|
Label Standard
|
M1 (S50, S70), CPU, NFC
|
|
Read-Write Distance
|
2-5cm
|
|
Data Collection
|
|
|
Scanning engine
|
E20 Scanning engine
|
|
2D
|
QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin code, Dotcode, Composite.
|
|
1D
|
Code 128 ( ISBT 128, AIM 128, GSI 128 ), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93,Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban.
|
ATEX intrinsically safe tablet T101EX
| ATEX & IECEX
Learn about ATEX and IECEx, the different hazardous environments in which products with these certifications can be used, and how ATEX intrinsically safe tablet T101EX can help you. WHAT IS ATEX CERTIFICATION? ATEX is an abbreviation from the French, ATmosphère EXplosible (or explosive atmospheres, translated into English), a term which appears in the name of the EU directive 94/9/EC (now replaced by ATEX DIRECTIVE 2014/34/EU), which relates to devices used in explosive atmospheres. ATEX certifications/standards signal a product’s level of suitability for use in hazardous environments. HOW TO GAIN ATEX CERTIFICATION ATEX certification is given to equipment that has gone through rigorous testing outlined by European Union directives. Products that are ATEX compliant have been proved safe to use in specific environments with explosive atmospheres, according to the zone/s they are certified to be used in. The European Union has mandated that ATEX compliance is necessary wherever a potentially explosive atmosphere exists in order to keep workers safe. These atmospheres are characterized by possessing three things.
Products that have received ATEX certification will have the official “Ex” badge, indicating they are safe in explosive atmospheres. Non-ATEX/IECEx safe computing devices used in hazardous areas could be an ignition source, so it is critical that ATEX/IECEx certified computing devices are used in those areas. Products that have received ATEX certification will have the official “Ex” badge, indicating they are safe in explosive atmospheres. （ATEX intrinsically safe tablet T101EX Passed rigorous certification tests） WHAT DOES IECEX CERTIFIED MEAN? Similar to ATEX certification, IECEx certification is given to products that have been thoroughly tested and proven to work safely in environments with explosive atmospheres. IECEx certification is an internationally accepted method that demonstrates compliance with IEC (International Electrotechnical Commission) standards. IEC standards and assessments are recognized internationally as a benchmark for fields of electrotechnology. ATEX AND IECEX CLASSIFICATION ATEX and IECEx products are classified and grouped into various categories as well as further subdivided into Zones, Groups, Protection Types, and Equipment Protection Levels (EPLs). Below is a sample marking for ATEX products. Certain classifications are only featured on ATEX equipment and not on IECEx products. ATEX CERTIFICATION VS. IECEX CERTIFICATION Equipment with either or both ATEX and IECEx certifications have met stringent requirements and are tested and certified to work in explosive environments. The main difference comes down to geography. ATEX certification is well-known, but it is specific to the European Union, while IECEx certification is accepted in other regions. ATEX ZONES AND EQUIPMENT CATEGORIES Explosive atmospheres are found in different environments, such as mines, factories, oil and gas rigs, and flour and wood mills, to name a few. Hazardous area zones have been defined according to the frequency of the presence of explosive materials in specific areas. Each zone has specific categories of equipment allowed. Zone 0, 1, 2 – These are zones specifically for atmospheres with hazardous gases, vapors, and mist.
Zone 20, 21, 22 – These are zones for areas in which dust clouds are or might be present.
POTENTIAL APPLICATIONS FOR ATEX/IECEX CERTIFIED COMPUTING DEVICES Working with hazardous materials requires vigilant explosion protection in all industries where explosive atmospheres may be present. We offers ATEX/IECEx certified tablets, helping professionals stay focused and safe while doing their job. Solutions built on these devices can be suitable for different uses, among them: （ATEX intrinsically safe tablet T101EX Passed rigorous certification tests）
|
