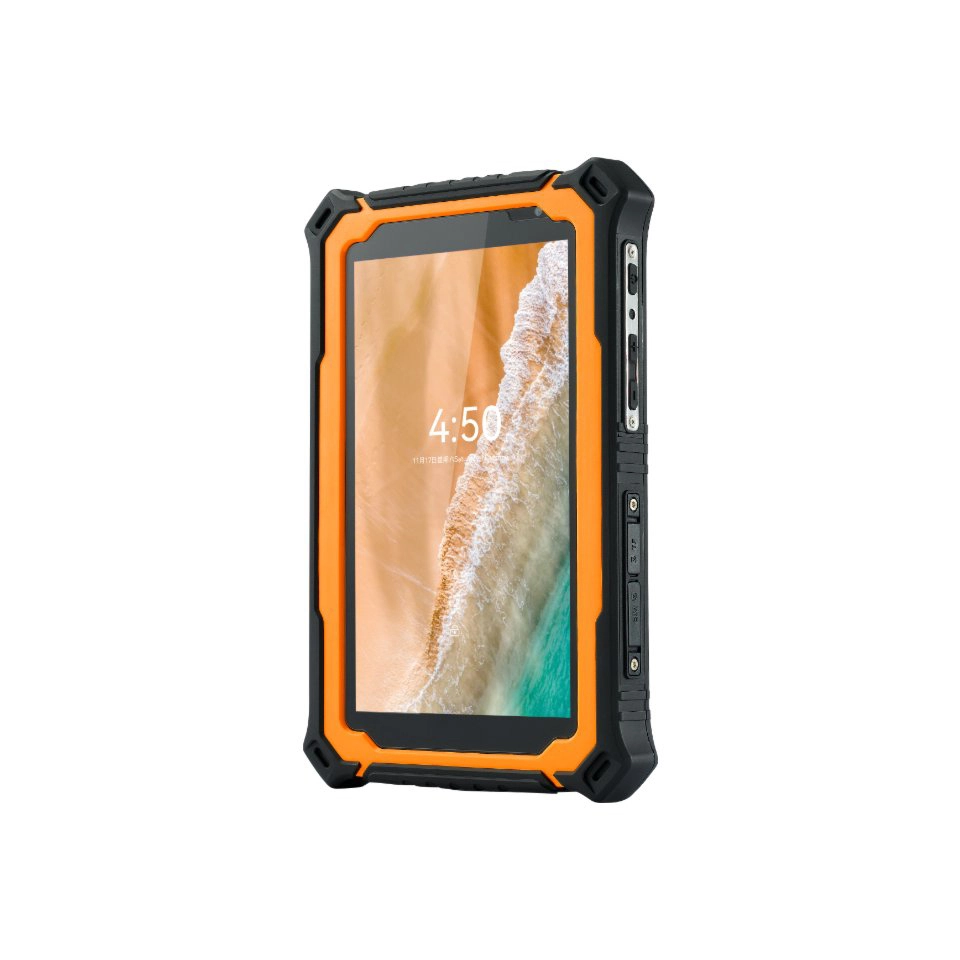

Android rugged tablets 7 inch T71
Android rugged tablets 7 inch T71 is a RFID rugged tablet computer with data acquisition capabilities. It supports RFID tag reading and writing as well as NFC applications.The product adopts leading industrial-grade protection, reaching the IP67 sealing standard. It has reliable performance against drops up to 1.8m in height.T71 supporting various RFID standards including low frequency (125KHz), high frequency 13.56M (14443A/B, 15693, NFC), ultra-high frequency (UHF 915MHz)
Detaill Shot
Tech Specs
Accessories
Android rugged tablets 7 inch T71
T71 is a multifunctional RFID rugged tablet computer with data acquisition capabilities. It supports RFID tag reading and writing as well as NFC applications. The T71 features a practical design, is portable and easy to carry, and uses a 7.0-inch G+G 5-point full-tempered high-strength capacitive touch screen. The product adopts leading industrial-grade protection, reaching the IP67 sealing standard. It has reliable performance against drops up to 1.8m in height, and its drop protection meets the military protection level of MIL-STD-810G/Method516.6/ProcedureIV.
It is equipped with a 10000mAh high-voltage large-capacity lithium battery, providing an exceptionally long battery life to support work more effectively. The fastest WIFI communication ensures efficient speed transmission. The T71 can be expanded with multiple RFID modules, supporting various RFID standards including low frequency (125KHz), high frequency 13.56M (14443A/B, 15693, NFC), ultra-high frequency (UHF 915MHz), etc., to meet the needs of various applications. It can also be expanded with a Zigbee module to achieve self-organizing networks.
Android rugged tablets 7 inch T71 can be used in fields with special operations and outdoor operations such as petroleum, chemical industry, smelting, natural gas, hazardous chemicals transportation, geography, logistics, forestry, public transportation, construction, maintenance, mining, military, and security. It features visibility under outdoor sunlight and the ability to start in extremely low temperatures. To meet the requirements of the high-precision mapping market, it is equipped with built-in GPS, GLONASS, GALILEO, and QZSS sub-meter level high-precision mapping modules, and it can be connected to a large antenna. Android rugged tablets 7 inch T71 Technical specifications are as follows:
Hardware | ||||
CPU | ARM Cortex A73 Octa –core ( 2.0GHz) | |||
GPU | Arm Mali–G72 MP3 | |||
RAM | 4G | |||
Internal Memory | 32G | |||
External Memory | Micro SD card ( T-FLASH card), max 256GB | |||
Main Camera | 13.0MP(AF) with flash led | |||
Sub Camera | 5.0MP | |||
Battery | 10000mAh | |||
Display | 7 inch IPS/AFFS 720*1280 HD industrial 1000nit Sunlight Readable | |||
Touch Panel | Capacitive/frosted tempered film supports glove touch/spray/active capacitive pen |
IO/Sensor/Navigation | ||||
SIM Card | 1.8/3.3V SIM card | |||
TF Card | Micro SD card ( T-FLASH card) ;max 256GB | |||
Headphone | 3.5mm (CTIA) | |||
Charging interface | Type-C*1 | |||
Data interface | USB Type-C*1 | |||
Direction Sensor | Support | |||
Gravity sensor | Support | |||
Magnetic Field Sensor | Support | |||
Motion sensor | Support | |||
Rotation Vector | Support | |||
Light-sensor | Support | |||
Acceleration sensor | Support | |||
Charger | 5.0V 2A-10W | |||
Navigation | GPS+Beidou+Glonass+AGPS+SBAS (EPO 2.5m) |
Appearance | ||||
Size | 200*132*21mm(L×W×H) | |||
Weight | 640g | |||
Color & Material | Black&yellow, Black&green, Black&Gray(PC+ABS+TPU) |
Communications & Networking | ||||
Phone Call | GSM /WCDMA/CDMA 1X/VoLTE | |||
2G | GSM/CDMA 1X/EDGE/GPRS/WAP | |||
2G Band | GSM(B2/3/5/8) | |||
3G | WCDMA 3.75G (HSDPA+ 42.2Mbps, HSUPA+ 11.5Mbps),EVDO | |||
3G Band | WCDMA(B1/2/5/8),Evdo: BC0/BC1 CDMA: BC0/BC1 | |||
4G | FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps downlink, 50Mbps uplink | |||
4G Band | TD-LTE(B38/39/40/41);FDD LTE(B1/2/3/4/5/7/8/12/17/20/28) | |||
WI-FI | Dual-band WIFI (2.4GHz/5Ghz) single stream 802.11 a/b/g/n/ac | |||
Bt | 5.0 Low Energy (LE) |
Industrial & Reliability Design | ||||
Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g | |||
Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 | |||
Waterproof | Class 7 ( IEC 60529 ) | |||
Dustproof | Class 6 ( IEC 60529 ) | |||
Reliability | MTBF>5000h;MTTR<0.5h | |||
Operating | -20°C to 55°C | |||
Storage Temperature | -40°C to 80°C | |||
RH | 5% to 95% | |||
Operating Altitude | Max: 4,500 m(15,000 feet) |
Certification/OS/Software | ||||
Certification | GMS/MA /3C /FCC/CE/ROHS/IP67(IEC 60529) | |||
Language | English, Spanish, Portuguese (Brazil), Portuguese (Portugal), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew, Simplified, Chinese,Chinese Traditional,etc | |||
OS | Android 9/10/11/13 (Continuous updates) |
Package/Warranty terms/OEM | ||||
Warranty | 24 months | |||
OEM/ODM | Support | |||
Package | USB cable/Charger 5V 2A/Introduction manual/Screen protector/Packing box (Can be customized logo)/Toolkit (optional) |
