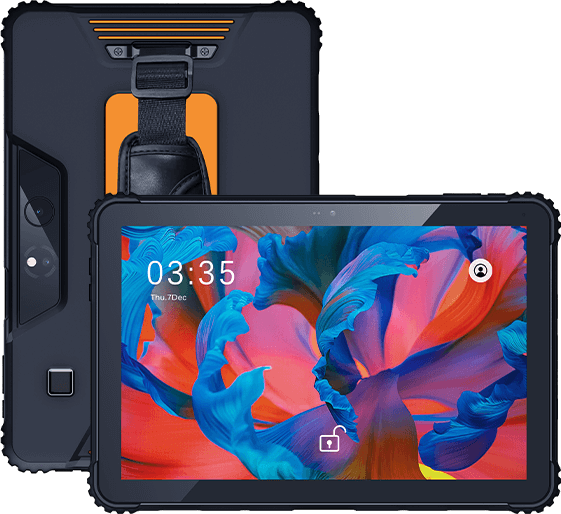

5G Android Industrial Rugged Tablet KP12

5G Android Industrial Rugged Tablet KP12  is a 10-inch rugged industrial tablet that supports 5G communication. It is waterproof, dustproof, and drop-resistant, with an IP67 protection rating. Equipped with the latest Google operating system, the KP12 also supports barcode scanning, NFC reading and writing, and more.The 10-inch high-definition, high-brightness screen remains clearly visible even under sunlight. It supports WiFi, Bluetooth, and GPS positioning.

Category:

幻灯片1 1 幻灯片2 幻灯片3 幻灯片4 幻灯片5 幻灯片6 幻灯片7 幻灯片8 幻灯片9 幻灯片10 幻灯片11 幻灯片12








5G Android Industrial Rugged Tablet KP12

Strong power and performance by  10.1″ Full-fit TFT color screen * | MediaTek2.6Ghz Super Core /MediaTeK Dimensity 1100 chipset/10.1 inch Full-fit TFT color screen/IP67 protection grade/Various 1D/2D barcode, stained and warped codes./NFC card/ ID card recognition/8500mAh Quick charge large capacity battery

MediaTek Dimensity 1100

Flagship performance, ultimate energy efficiency

– 6nm chipset
– Octa cores(8)
– 650MHz GPU Frequency
– Up to 2.6GHz CPU speeds
– Android™12.0 system

Brighter&Stronger

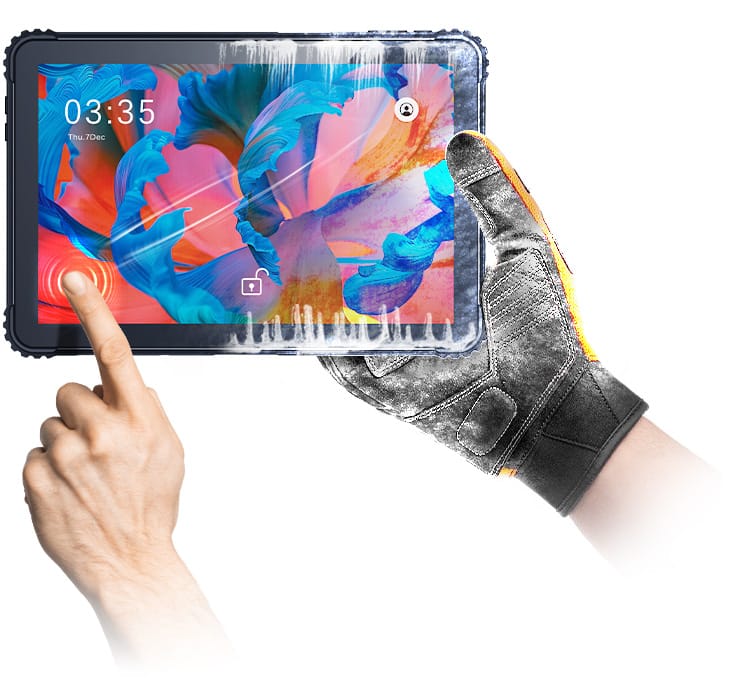

10.1-inch fully-rugged Android tablet with 1920*1200 resolution/ Corning Gorilla 3rd, drop and scratch resistant.10-point touch and glove touch functionality ensures that the device works even in extreme conditions.

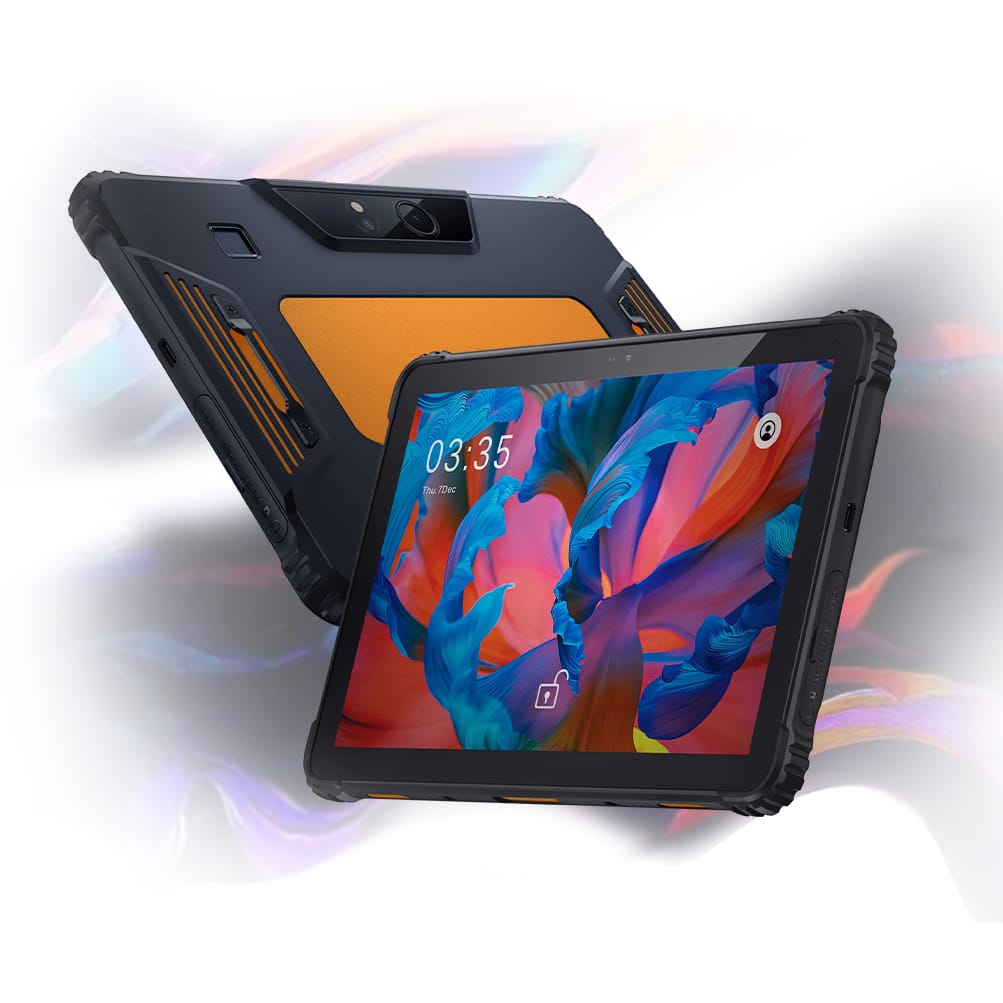

Exceptional rugged defense tablet

Rugged tablets certified with the IP67 protection level, withstand 1.2m to the ground impact, shock-resistant and drop-resistant,

fearless in harsh environments

Intelligent Recognition and Efficient Data Collection

5G Android Industrial Rugged Tablet KP12 can quickly recognizes all kinds of 1D/2D codes, collects data accurately even when damaged or twisted

NFC Fast Identification and Sensing

Built-in proximity sensor identification chip, proximity card and point-to-point communication function support:

– 13.56MHz Contact-less interface modem
– ISO/EC18000-3, 18092
– ISO/IEC 14443 A/B
– ISO/IEC15693 Mifare compliance

0.5s Lightning Fingerprint Unlocking

5G Android Industrial Rugged Tablet Fingerprint recognition on the back of the efficient, safe and sensitive identification, intelligent technology to enjoy life, 0.5

seconds fast unlocking.

Easy to carry around

The friendly and practical new concept of portable wrist strap design (optional), close to the palm of the hand, more reliable use, will not easily fall off, the wrist strap can be adjusted  according to your preference, comfortable and not tight.

8500 mAh Ultra-long Battery Life

8500mAh large capacity lithium battery, support PD protocol fast charging, even in the wild work without fear of any challenges.

Specifications

Basic

Product Model

KP12

OS Version

Android ™ 12.0

CPU Type

MTK6891(MTK 1100), 6nm, 8 core, 3*Arm Cortex-A78@2.6GHz,4*Arm Cortex-A55@2.0GHz

Memory

6GB RAM+128GB ROM/8GB +128GB /8GB+256GB(option)

Display

Screen

10.1” HD (1920*1200)

Touch screen

Support (Multi-point touch)

TP

Capacitive multi-touch screen G+FF

Network

Connections

Bands

2.4G&5GHz,dual band

Wi-Fi

Wi-Fi6, IEEE 802.11 a/b/g/n/ac/ax

Bands

5G: N1/3/5/7/8/20/28/38/40/41/77/78/79

4G: TDD-LTE:B34/38/39/40/41; FDD-LTE:1/3/5/7/8/20/26/28A/28B;TD-SCDMA:B38/39/40/41

3G: WCDMA:B1/2/5/8; CDMA:BC0/BC1

2G: GSM:B2/3/5/8

Data link

5G:NR

4G:TDD LTE FDD LTE
3G:HSPA+ ,EVDO GPRS EDGE; 2G:GPRS class 12/EDGEE

Camera

Front

8MP FF

Rear

20MP AF

Flashlight

Support

Speakers

Speaker

8R, 1W*2

MIC

Support (Dual micro)

Sensor

G-sensor

Support(3D)

Light sensing

Support

Compass

Support

Motor

Support

Fingerprint unlock

Support

GPS

GPS/A-GPS/GLONASS/BEIDOU

Scan module

1D/2D

StandardCM60/N1/, Zebra SE4710/Hoeni N6603/N6703/HS7

Connectivity

Bluetooth

BT5.1

NFC

Support, 13.56MHz Contactlese interface modem

–  ISO/IEC 18000-3 、18092

–  ISO/IEC 14443 A/B

–  ISO/IEC 15693 Mifare compliance

OTG

Support

Interface

SIM Card Slot

Dual cards(SIM+SIM or SIM+TF)

USB interface

TYPE-C, OTG

Earphone interface

3.5mm

Battery

Capacity

8500mAh Lithium-ion polymer battery

Others

Charger

DC 5V/3A, 9V/3A

Data cable

TYPE-C, 3.0

Dimension

254.2*172.6*13.5mm

Weight

830g

FM

Support

Google CMS

Support

Environment

Working Temperature

-10℃-50℃

Storagy Temperature

-20℃-70℃

Working Humidity

5%-95%

Waterproof

IP67
